Dialog Class Reference

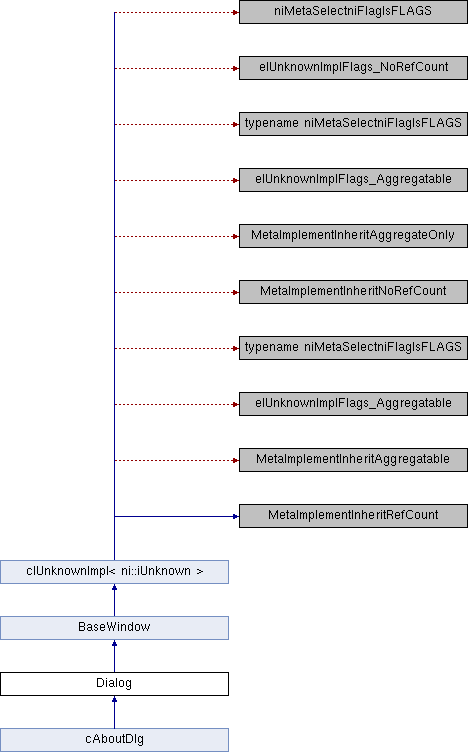

Inheritance diagram for Dialog:

Detailed Description

Dialog wrapper class.

See also

WINUI_DLG_BEGIN_MSG_MAP, GlobalDlgProc(), Window

Remarks

Do not change the GWL_USERDATA of the dialog, it is required by GlobalDlgProc() to correctly route the messages

Public Member Functions
	Dialog (const TCHAR *pszDialogTemplate)
	Dialog (UINT anDlg)
virtual	~Dialog ()
BOOL	Create (bool bShow, HWND hParent)
	Create a modeless dialog box from a dialog box template resource. More...
BOOL	Create (bool bShow=true, Window *pParent=NULL)
BOOL	DoModal (HWND hParent)
	Creates a modal dialog box from a dialog box template resource. More...
BOOL	DoModal (Window *pParent=NULL)
	Creates a modal dialog box from a dialog box template resource. More...
virtual INT_PTR	DlgProc (HWND hWndDialog, UINT uMsg, WPARAM wParam, LPARAM lParam)
	Internal dialog procedure. More...
Public Member Functions inherited from BaseWindow
	BaseWindow ()
	BaseWindow (HWND hWnd, BOOL bDestroy)
virtual	~BaseWindow ()
virtual BOOL	Reshape (UINT iCX, UINT iCY)
HWND	GetHWND () const
bool	Attach (HWND hWnd, BOOL bDestroy)
	Attach object to an existing handle. More...
void	Detach ()
bool	AttachDlgItem (HWND hDlg, INT iItemID)
void	CenterOnScreen ()
void	AddStyle (DWORD dwStyle)
virtual void	Destroy ()
virtual WINUI_INL BOOL	IsCreated () const
virtual BOOL	ShowWindow (int iCmdShow)
virtual BOOL	SetWindowPos (HWND hWndAfter, int iX, int iY, int iCX, int iCY, UINT iFlags=SWP_NOZORDER)
virtual BOOL	GetWindowRect (Rect &rcWnd)
virtual BOOL	SetWindowRect (Rect rcWnd)
virtual BOOL	GetClientRect (Rect &rcClient)
virtual LRESULT	SendMessage (UINT Msg, WPARAM wParam, LPARAM lParam)
virtual BOOL	PostMessage (UINT Msg, WPARAM wParam, LPARAM lParam)
virtual void	SetParent (BaseWindow *pWnd)
virtual LONG	GetTextLength () const
virtual void	GetText (TCHAR *aszOut, ULONG nMaxChar) const
virtual void	SetText (const TCHAR *aszStr)
virtual ni::cString	GetText () const
virtual HDC	GetDC ()
virtual void	ReleaseDC (HDC hDC)
virtual HWND	SetCapture ()
virtual BOOL	ReleaseCapture () const
virtual BOOL	UpdateWindow ()
virtual DWORD	GetStyle () const
virtual DWORD	GetExStyle () const
virtual LONG	GetWindowLong (int nIndex) const
virtual LONG	SetWindowLong (int nIndex, LONG dwNewLong)
BOOL	SendNotifyMessage (UINT message, WPARAM wParam=0, LPARAM lParam=0)
int	GetWindowTextLength () const
void	SetFont (HFONT hFont, BOOL bRedraw=TRUE)
HFONT	GetFont () const
BOOL	BringWindowToTop ()
BOOL	GetWindowPlacement (WINDOWPLACEMENT *lpwndpl) const
BOOL	SetWindowPlacement (const WINDOWPLACEMENT *lpwndpl)
BOOL	ClientToScreen (LPPOINT lpPoint) const
BOOL	ClientToScreen (Rect *pRect) const
BOOL	ScreenToClient (LPPOINT lpPoint) const
BOOL	ScreenToClient (Rect *pRect) const
BOOL	Invalidate (BOOL bErase=TRUE)
BOOL	InvalidateRect (LPCRECT lpRect, BOOL bErase=TRUE)
BOOL	ValidateRect (LPCRECT lpRect)
void	InvalidateRgn (HRGN hRgn, BOOL bErase=TRUE)
BOOL	IsVisible () const
BOOL	IsEnabled () const
BOOL	Enable (BOOL bEnable=TRUE)
HWND	SetActiveWindow ()
HWND	SetFocus ()
int	GetScrollPos (int nBar) const
BOOL	GetScrollRange (int nBar, LPINT lpMinPos, LPINT lpMaxPos) const
BOOL	ScrollWindow (int xAmount, int yAmount, Rect *pRect=NULL, Rect *pClipRect=NULL)
int	ScrollWindowEx (int dx, int dy, Rect *pRectScroll, Rect *pRectClip, HRGN hRgnUpdate, Rect *pRectUpdate, UINT uFlags)
int	ScrollWindowEx (int dx, int dy, UINT uFlags, Rect *pRectScroll=NULL, Rect *pRectClip=NULL, HRGN hRgnUpdate=NULL, Rect *pRectUpdate=NULL)
int	SetScrollPos (int nBar, int nPos, BOOL bRedraw=TRUE)
BOOL	SetScrollRange (int nBar, int nMinPos, int nMaxPos, BOOL bRedraw=TRUE)
BOOL	ShowScrollBar (UINT nBar, BOOL bShow=TRUE)
BOOL	EnableScrollBar (UINT uSBFlags, UINT uArrowFlags=ESB_ENABLE_BOTH)
BOOL	IsChild (HWND hWnd) const
BOOL	FlashWindow (BOOL bInvert)
HICON	SetIcon (HICON hIcon, BOOL bBigIcon=TRUE)
HICON	GetIcon (BOOL bBigIcon=TRUE) const
int	GetWindowRgn (HRGN hRgn)
int	SetWindowRgn (HRGN hRgn, BOOL bRedraw=FALSE)
BOOL	SetTopMost ()
Public Member Functions inherited from cIUnknownImpl< ni::iUnknown >
	cIUnknownImpl ()
virtual tBool	IsOK () const
virtual void	Invalidate ()
virtual iUnknown *	QueryInterface (const ni::tUUID &aIID)
virtual void	ListInterfaces (iMutableCollection *apLst, tU32) const

Additional Inherited Members
Public Types inherited from cIUnknownImpl< ni::iUnknown >
typedef cIUnknownImpl < ni::iUnknown, FLAGS, T1, T2, T3, T4 >	BaseImpl
typedef ni::iUnknown	Base0
typedef T1	Base1
typedef T2	Base2
typedef T3	Base3
typedef T4	Base4
Protected Attributes inherited from BaseWindow
HWND	m_hWnd
BOOL	m_bDestroy

Constructor & Destructor Documentation

Dialog

(

const TCHAR *

pszDialogTemplate

)

Parameters

pszDialogTemplate

Name of the dialog box template

Dialog

(

UINT

anDlg

)

virtual ~Dialog ( )

virtual

Member Function Documentation

BOOL Create	(	bool	bShow,
		HWND	hParent
	)

Create a modeless dialog box from a dialog box template resource.

Parameters

bShow	true if the dialog shoud be initially visible
hParent	Parent window of the dialog

Returns

TRUE in case of success

BOOL Create	(	bool	bShow = true,
		Window *	pParent = NULL
	)

BOOL DoModal

(

HWND

hParent

)

Creates a modal dialog box from a dialog box template resource.

Returns

TRUE in case of success

BOOL DoModal

(

Window *

pParent = NULL

)

Creates a modal dialog box from a dialog box template resource.

Returns

TRUE in case of success

virtual INT_PTR DlgProc ( HWND  hWndDialog, UINT  uMsg, WPARAM  wParam, LPARAM  lParam  )

virtual

Internal dialog procedure.

Remarks

Do not override directly, use message map macros

See also

WINUI_DLG_BEGIN_MSG_MAP
