Splitter Class Reference

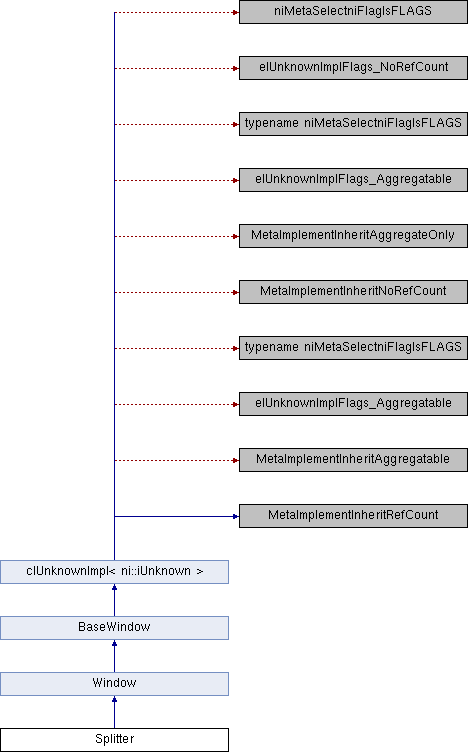

Inheritance diagram for Splitter:

Detailed Description

Splitter window control.

Public Member Functions
BOOL	Create (BaseWindow *pParent, Window *pFirstPan=NULL, Window *pSecondPan=NULL, bool bVertical=false)
	Creates a slitter window control. More...
void	SetFirstPan (Window *pWnd)
void	SetSecondPan (Window *pWnd)
bool	Reshape ()
void	CenterSplitter ()
	Centers the splitter inside the parent window. More...
BOOL	Reshape (UINT iCX, UINT iCY)
void	SetSplitterPos (UINT iPos)
UINT	GetSplitterPos () const
Public Member Functions inherited from Window
	Window ()
	Window (HWND hWnd, BOOL bDestroy)
virtual	~Window ()
virtual LRESULT	WndProc (HWND hWnd, UINT message, WPARAM wParam, LPARAM lParam)
	Internal window procedure. More...
virtual BOOL	Create (DWORD dwStyle=WS_VISIBLE, DWORD dwExStyle=NULL, LPCTSTR lpClassName=WINUI_DEF_WND_CLS, LPCTSTR lpWindowName=NULL, BaseWindow *pParent=NULL, MENUOrID hMenu=(UINT) 0)
	Generic window creation function. More...
Public Member Functions inherited from BaseWindow
	BaseWindow ()
	BaseWindow (HWND hWnd, BOOL bDestroy)
virtual	~BaseWindow ()
HWND	GetHWND () const
bool	Attach (HWND hWnd, BOOL bDestroy)
	Attach object to an existing handle. More...
void	Detach ()
bool	AttachDlgItem (HWND hDlg, INT iItemID)
void	CenterOnScreen ()
void	AddStyle (DWORD dwStyle)
virtual void	Destroy ()
virtual WINUI_INL BOOL	IsCreated () const
virtual BOOL	ShowWindow (int iCmdShow)
virtual BOOL	SetWindowPos (HWND hWndAfter, int iX, int iY, int iCX, int iCY, UINT iFlags=SWP_NOZORDER)
virtual BOOL	GetWindowRect (Rect &rcWnd)
virtual BOOL	SetWindowRect (Rect rcWnd)
virtual BOOL	GetClientRect (Rect &rcClient)
virtual LRESULT	SendMessage (UINT Msg, WPARAM wParam, LPARAM lParam)
virtual BOOL	PostMessage (UINT Msg, WPARAM wParam, LPARAM lParam)
virtual void	SetParent (BaseWindow *pWnd)
virtual LONG	GetTextLength () const
virtual void	GetText (TCHAR *aszOut, ULONG nMaxChar) const
virtual void	SetText (const TCHAR *aszStr)
virtual ni::cString	GetText () const
virtual HDC	GetDC ()
virtual void	ReleaseDC (HDC hDC)
virtual HWND	SetCapture ()
virtual BOOL	ReleaseCapture () const
virtual BOOL	UpdateWindow ()
virtual DWORD	GetStyle () const
virtual DWORD	GetExStyle () const
virtual LONG	GetWindowLong (int nIndex) const
virtual LONG	SetWindowLong (int nIndex, LONG dwNewLong)
BOOL	SendNotifyMessage (UINT message, WPARAM wParam=0, LPARAM lParam=0)
int	GetWindowTextLength () const
void	SetFont (HFONT hFont, BOOL bRedraw=TRUE)
HFONT	GetFont () const
BOOL	BringWindowToTop ()
BOOL	GetWindowPlacement (WINDOWPLACEMENT *lpwndpl) const
BOOL	SetWindowPlacement (const WINDOWPLACEMENT *lpwndpl)
BOOL	ClientToScreen (LPPOINT lpPoint) const
BOOL	ClientToScreen (Rect *pRect) const
BOOL	ScreenToClient (LPPOINT lpPoint) const
BOOL	ScreenToClient (Rect *pRect) const
BOOL	Invalidate (BOOL bErase=TRUE)
BOOL	InvalidateRect (LPCRECT lpRect, BOOL bErase=TRUE)
BOOL	ValidateRect (LPCRECT lpRect)
void	InvalidateRgn (HRGN hRgn, BOOL bErase=TRUE)
BOOL	IsVisible () const
BOOL	IsEnabled () const
BOOL	Enable (BOOL bEnable=TRUE)
HWND	SetActiveWindow ()
HWND	SetFocus ()
int	GetScrollPos (int nBar) const
BOOL	GetScrollRange (int nBar, LPINT lpMinPos, LPINT lpMaxPos) const
BOOL	ScrollWindow (int xAmount, int yAmount, Rect *pRect=NULL, Rect *pClipRect=NULL)
int	ScrollWindowEx (int dx, int dy, Rect *pRectScroll, Rect *pRectClip, HRGN hRgnUpdate, Rect *pRectUpdate, UINT uFlags)
int	ScrollWindowEx (int dx, int dy, UINT uFlags, Rect *pRectScroll=NULL, Rect *pRectClip=NULL, HRGN hRgnUpdate=NULL, Rect *pRectUpdate=NULL)
int	SetScrollPos (int nBar, int nPos, BOOL bRedraw=TRUE)
BOOL	SetScrollRange (int nBar, int nMinPos, int nMaxPos, BOOL bRedraw=TRUE)
BOOL	ShowScrollBar (UINT nBar, BOOL bShow=TRUE)
BOOL	EnableScrollBar (UINT uSBFlags, UINT uArrowFlags=ESB_ENABLE_BOTH)
BOOL	IsChild (HWND hWnd) const
BOOL	FlashWindow (BOOL bInvert)
HICON	SetIcon (HICON hIcon, BOOL bBigIcon=TRUE)
HICON	GetIcon (BOOL bBigIcon=TRUE) const
int	GetWindowRgn (HRGN hRgn)
int	SetWindowRgn (HRGN hRgn, BOOL bRedraw=FALSE)
BOOL	SetTopMost ()
Public Member Functions inherited from cIUnknownImpl< ni::iUnknown >
	cIUnknownImpl ()
virtual tBool	IsOK () const
virtual void	Invalidate ()
virtual iUnknown *	QueryInterface (const ni::tUUID &aIID)
virtual void	ListInterfaces (iMutableCollection *apLst, tU32) const

Protected Types
enum	{ SPLITTER_WIDTH }

Protected Member Functions
void	ObtainSplitterRect (Rect &rcOut)
void	EnableMouseTracking ()
LRESULT	OnMouseLeave (UINT message, WPARAM wParam, LPARAM lParam)
LRESULT	OnMouseMove (UINT message, WPARAM wParam, LPARAM lParam)
LRESULT	OnLButtonDown (UINT message, WPARAM wParam, LPARAM lParam)
LRESULT	OnPaint (UINT message, WPARAM wParam, LPARAM lParam)
LRESULT	OnLButtonUp (UINT message, WPARAM wParam, LPARAM lParam)
UINT	ReverseYAxis (UINT iY)

Protected Attributes
Window *	m_pFirstPan
Window *	m_pSecondPan
bool	m_bVertical
bool	m_bDragging
UINT	m_iSplitterPos
Protected Attributes inherited from BaseWindow
HWND	m_hWnd
BOOL	m_bDestroy

Additional Inherited Members
Public Types inherited from cIUnknownImpl< ni::iUnknown >
typedef cIUnknownImpl < ni::iUnknown, FLAGS, T1, T2, T3, T4 >	BaseImpl
typedef ni::iUnknown	Base0
typedef T1	Base1
typedef T2	Base2
typedef T3	Base3
typedef T4	Base4

Member Enumeration Documentation

anonymous enum

protected

Enumerator
SPLITTER_WIDTH

Member Function Documentation

BOOL Create	(	BaseWindow *	pParent,
		Window *	pFirstPan = NULL,
		Window *	pSecondPan = NULL,
		bool	bVertical = false
	)

Creates a slitter window control.

Parameters

pParent	Parent window
pFirstPan	Window above / left of the splitter
pSecondPan	Window below / right of the splitter
bVertical	true if splitter should be vertical, false for horizontal

Returns

TRUE in case of success

void SetFirstPan

(

Window *

pWnd

)

void SetSecondPan

(

Window *

pWnd

)

bool Reshape

(

)

void CenterSplitter

(

)

Centers the splitter inside the parent window.

BOOL Reshape ( UINT  iCX, UINT  iCY  )

virtual

Reimplemented from BaseWindow.

void SetSplitterPos

(

UINT

iPos

)

UINT GetSplitterPos

(

)

const

void ObtainSplitterRect ( Rect &  rcOut )

protected

void EnableMouseTracking ( )

protected

LRESULT OnMouseLeave ( UINT  message, WPARAM  wParam, LPARAM  lParam  )

protected

LRESULT OnMouseMove ( UINT  message, WPARAM  wParam, LPARAM  lParam  )

protected

LRESULT OnLButtonDown ( UINT  message, WPARAM  wParam, LPARAM  lParam  )

protected

LRESULT OnPaint ( UINT  message, WPARAM  wParam, LPARAM  lParam  )

protected

LRESULT OnLButtonUp ( UINT  message, WPARAM  wParam, LPARAM  lParam  )

protected

UINT ReverseYAxis ( UINT  iY )

protected

Member Data Documentation

Window* m_pFirstPan

protected

Window* m_pSecondPan

protected

bool m_bVertical

protected

bool m_bDragging

protected

UINT m_iSplitterPos

protected
