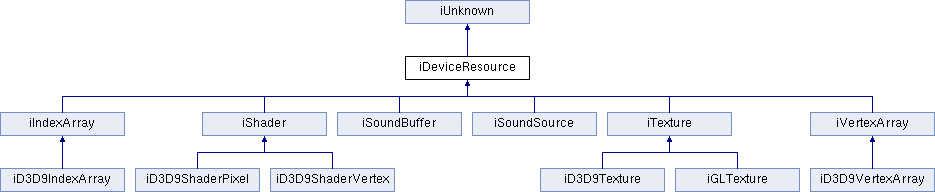

Inheritance diagram for iDeviceResource:

Detailed Description

Device resource interface.

Public Member Functions
virtual iHString *	GetDeviceResourceName () const =0
	Get the resource's name. More...

virtual tBool	HasDeviceResourceBeenReset (tBool abClearFlag)=0
	Check whether the device resource has just been reset. More...

virtual tBool	ResetDeviceResource ()=0
	Reset the device resource. More...

virtual iDeviceResource *	Bind (iUnknown *apDevice)=0
	Called when the resource is going to be used by the device. More...

Public Member Functions inherited from iUnknown
virtual tBool	IsOK () const =0
	Check if the object is valid. More...

virtual tI32	AddRef ()=0
	Signal that one more reference of the object has been created. More...

virtual tI32	Release ()=0
	Release a reference of the object. More...

virtual void	DeleteThis ()=0
	Bypass any reference counting and delete this object. More...

virtual void	Invalidate ()=0
	Invalidate the object. More...

virtual iUnknown *	QueryInterface (const tUUID &aIID)=0
	Query an interface. More...

virtual void	ListInterfaces (iMutableCollection *apLst, tU32 anFlags) const =0
	Fill a UUID list containing the UUIDs of the implemented interfaces. More...

virtual tI32	SetNumRefs (tI32 anNumRefs)=0
	Set the reference counter directly. More...

virtual tI32	GetNumRefs () const =0
	Get the number of references to this object. More...

Member Function Documentation

virtual iHString* GetDeviceResourceName ( ) const

pure virtual

Get the resource's name.

virtual tBool HasDeviceResourceBeenReset ( tBool abClearFlag )

pure virtual

Check whether the device resource has just been reset.

Parameters

abClearFlag if true the next call to HasDeviceResourceBeenReset will return false.

virtual tBool ResetDeviceResource ( )

pure virtual

Reset the device resource.

virtual iDeviceResource* Bind ( iUnknown * apDevice )

pure virtual

Called when the resource is going to be used by the device.

Parameters

apDevice is an implementation/device specific object passed to bind to support things such as virtual device resources.

Remarks: Should return a device-compatible resource to be used.; This allows resources to be virtual, proxy 'resources' can be created to mimic the device resource and return a valid device-compatible resource only when Bind is called.; Object that make use of this method documents it in the interface declaration with the remark "Bindable"
